2020 Ford F-150 Engine Options and Specifications

What engine options does the 2020 Ford F-150 have to offer?

The 2020 Ford F-150 has six engine options for you to choose from, which may seem like a lot. Some things to consider are whether you want a standard gasoline engine or a diesel engine and how much power you need. Keep reading below to learn about the 2020 Ford F-150 engine options and specifications.



Option One 3.3 L Ti-VCT V6 FFV engine
Horsepower rating 290 horsepower at 4,000 rpm
Torque rating 265 pound-feet at 4,000 rpm
Additional information Out of six engines, only two including this one offer a multi-core power-train control module for engine cooling.
Option Two 2.7 L Turbocharged EcoBoost ® engine
Horsepower rating 325 horsepower at 5,000 rpm
Torque rating 400 pound-feet at 2,750 rpm
Additional information This engine offers the smallest displacement at 2.7 L.

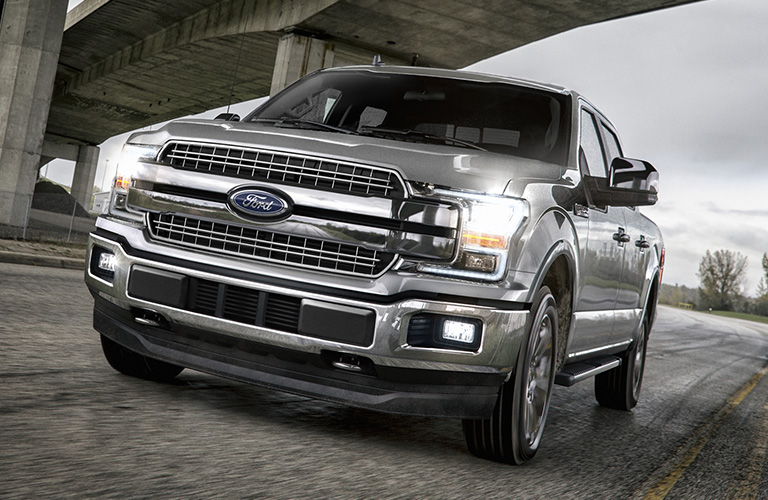

2020 Ford F-150 truck front view on a road
2020 Ford F-150 rear view on dirt by a horse
Option Three 5 L TI-VCT V8 engine
Horsepower rating 395 horsepower at 5,750 rpm
Torque rating 400 pound-feet at 4,500 rpm
Additional information This engine has the highest capacity for engine oil and takes up to 8.85 quarts.
Option Four 3.5 L EcoBoost V6 engine
Horsepower rating 375 horsepower at 5,000 rpm
Torque rating 470 pound-feet at 3,500 rpm
Additional information Along with the 2.7 L engine, this engine has a twin turbocharged and intercooled V6 configuration.

2020 Ford F-150 towing capacity


Option Five 3 L Power Stroke ® Turbo Diesel engine
Horsepower rating 250 horsepower at 3,250 rpm
Torque rating 440 pound-feet at 1,750 rpm
Additional information This is your second option with a multi-core power-train control module to cool the engine.
Option Six High Output 3.5 L EcoBoost V6 engine
Horsepower rating 450 horsepower at 5,000 rpm
Torque rating 510 pound-feet at 3,5000 rpm
Additional information This engine offers the highest horsepower and torque ratings.
